Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Patrol Hawk
Model Number: PH-G2
Usage: security&protection, burglar alarm system
product name: smart gsm wireless home burglar security alarm system
color: white/black as optional
GSM frequency: 850/900/1800/1900 mhz
wireless frequency: 433/315 mhz
language:English,Russian,Spanish,German,French,etc
Dismension: 187*130*27(L*W*H) mm
backup battery: DC7.4V/800 mah for 10 hour stanby
wireless zone: 24
wired zone: 2
warranty: 3 years
Packaging & Delivery
| Packaging Details: | Color box package :
1set:27*17*10cm (L*W*H)
10 PCS/carton
Carton size:53*26*38 cm (L*W*H) |
|---|
| Delivery Detail: | 1 day for sample,bulk quantity for 5 working day |
|---|
Product Description
Main features for the burglar alarm system :
1. iPH and Android APP
2. ARM CPU
3. Touch keypad, enable to arm/disarm/home mode via keypad
4. Learning code, support 2262 (4.7M) and 1527 (330k) encoding chip
5. Two-way communication,
6. 24 wireless zones, 6 fire alarm zones, 20 remote controllers or panic button and 2 wired zones
7. Support to switch 6 voice and languages (English, Russian, Spanish, German, French and Chinese)
8. Setup 3 numbers for SMS, 3 numbers for calling
9. Delay alarm function (0-60 seconds optional)
10. Setup siren ringing time (0-254 seconds optional)
11. Wireless transmission for wireless siren and 2 routes wireless relays
12. control the alarm via SMS and phone keypad
13. Home mode function
14. Record voice for 10 seconds
15. External power failure/recovery alarm function (optional)
16. Siren prompt when arm/disarm
17. SMS prompt when arm/disarm
Technical Datasheet :
| Wireless Frequency | 315/433 Mhz |
| GSM Frequency | 850/900/1800/1900Mhz |
| Alarm response time | <10S |
| Power requirement | Input: AC 220V 50Hz/60Hz
Output: DC 12V/1A |
| Working consumption | < 0.6W |
| Backup battery | DC7.4V/850MA |
| Backup battery working hours | ≥10 hours |
| Working condition | Temperature: -20~ 55℃ humidity: ≤90% (non-condensation) |
| Size | 187(L)×130(W)×27(H)mm |
Record time | 10S |
Packaging & Shipping
Two package as optional for the gsm alarm system :

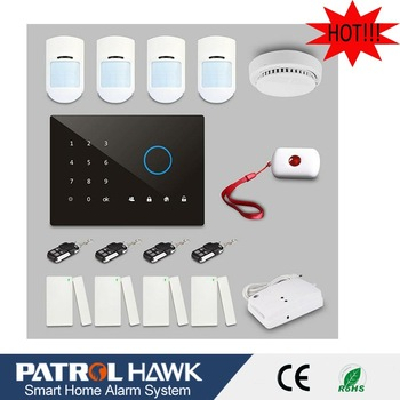

Items for small package:
1x alarm panel PH-G2
2x Remote conrol
1x Wireless Motion sensor with built-in antenna
1x Door/window magnetic contact with bult-in antenna
1x panic button
1x English manual
1x Giftbox
Item for the large package:
1x alarm panel PH-G2
4x Remote conrol
4x Wireless Motion sensor with built-in antenna
4x Door/window magnetic contact with bult-in antenna
1x smoke detector
1x gas detector
1x panic button
1x English manual
1x Giftbox
Our Services
OEM&ODM service:
a.we can do the customized the language (such as Italian, Arabic,Portuguese,French ,etc ) for the customers.
b.we can print your logo on the alarm system ,also can print your logo on the color box.
c.we can do the alarm system with the customized function as the customers' requirement.
After-sale service :
1.3 years warranty ,and first 3 month accept replacement or refund money if there're any quality problem .
2.24 on-line technical support and after-sale service .
3. free technical trainning for customers' technical if needed.
Why us?
1. High quality
Our Patrol Hawk is a leading manufacture and designer of GSM alarm system for 13 years.
Our products has sold well in 120 countries, well known for its stable function and easy installation.
2. Factory price
We are the factory, and we always offer bottom price. Customers’ brand and logo are available.
3. Excellent Service
We appreciate our valued buyers, if you have any questions, we will try our best to reply to your emails as soon as possible even with time zone difference.
4. Warranty
1 year warranty, first 3 months replacement, long-life maintenance.
Company Information
Our company Shenzhen Patrol Hawk Technology Co.,ltd. is located in Shenzhen ,China.We focus on the security alarm system for more than 13 years,amd we have been dedicated in researching, manufacturing and selling alarm systems for 11 years.We provide different kinds of GSM alarm system,such as the GSM home alarm,industrial alarm system,power alarm system,MMS alarm system,video alarm system,Wifi alarm system,center monitoring software,different kinds of detectors ,etc.
FAQ
Q: What's the MOQ ?
A:The MOQ for the alarm system is 10 PCS ,and it is also okay to take 1 sample for testing first .
Q:How to place order?
A:
-confirm order
-make invoice
-make payment
-delivery the goods
-Sign the parcel
Q:How to add more sensors ?
For the anti-theft alarm system PH-G2 it can compatible with the fixed code and the learning code two sensor. Kindly pls.refer the tips below to add more sensors:
Touch learn icon on keypad after system gets into setting status,input "zone number OK" comes with two "di,di",beep souds,the icon OK flash twice,then trigger the detector.The learn button LED light gets off when learn successfully.If the system comes with 3 quick beep sounds as well as learn button flash twice ,it means some repeat sensors have been in the same zones or your opreation is error.pls. learn again .
