Vcare

HD IP camera Monitoring
Our Vcare HD IP camera Vcube acts as an eye within your premises ensuring safety for your whole family.

Specifications:
Operation System: La test H.264 Baseline Profile
Image Sensor: 1.0 MP HD CMOS Sensor
Core Chipset: Latest DSP Chipset
Resolution: 720 HD images, resolution upto 1280*720P, 1.0MP
Resolution Variable: 720P (1280*720), VGA (640*360), QVGA (320*180)
Frame Rate: 1~30fps
Min.Illumination: color: 1.5 Lux, W/B: 0 Lux with IR LED ON
IR Distance: Dual IR cut fillter with auto switch, 2 pcs high-powered ceramic IR LEDs, night vision at 20 Meters.
S/N Ratio: ≥ 38db
CMOS Features: support auto balance, contrast and background light compensation.
Lens/visual Angel: 3.6mm megapixel lens @F14/74°
System security: Account, password two level user authentication.
ONVIF Protocol: support
Mobile phone monitor: support megapixel HD mobile phone monitor, dedicated IPHONE and Android software. (Software version required iOS7.0, Android 3.0 and above)
Local storage: support maximum 128Gb TF card, 24 hours recording. (storeage capacity of above 32GB requires FAT 32 formatting.)
Audio Compression: G.711A
Audio Input: 1CH Buitin 38db microphone
Audio Output: Built-in two speakers (8Ω1W)
Video Management: Recording mode: manual recording, schedule cording and alarm recording.
Video storage: TF card Max: 128GB, NVR (support Onvif), Local client software.
Network interface: 10Mbps/100Mbps self adaptive RJ45 interface
Protocol: TCP/IP, HTTP/TCP,UDP, SMTP, DHCP, DNS, DDNS, NTP, UPnP, P2P.
WiFi: WiFi 802.11b/g/n
System Configuration: iOS 7.0, Android 3.0 and above.
Material: cartoon robot/engineering plastics
Working Condition: Indoor.
Power Supply: DC5V 2A
Working Temperature: -10℃~50℃
Working Humidity: ≤95% RH
Dimensions: 104 L* 102W* 117H (MM)
Weight: N.W: 300g, G.W: 680g
Dimensions: 200L*150W*115H (mm)
Installation method: Mounted on wall or put it on the table.

Our Company

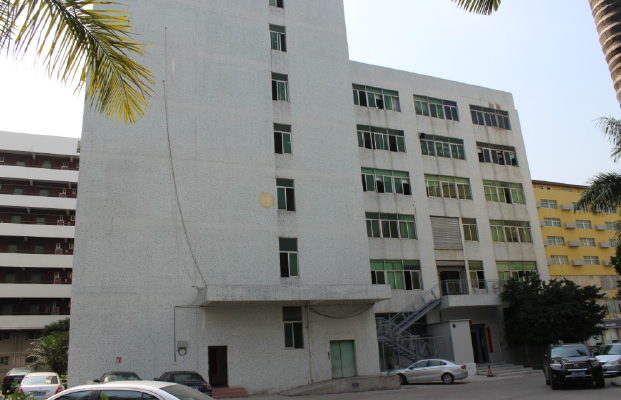

3000㎡ FACTORY
With 2000㎡ factory, Patrol hawk has built itself R&D team, production lines, large warehouses and also introduce advanced equipments, such as high-low temperature tester, Vibration tester,etc. For control quality, it even built itself burn-in house, shielded room, and waterproof testing equipments,etc.

OUR TEAM
Patrol Hawk’s management team is committed to growing and leading this company to become the leader of alarm system the industry through hard-work, integrity and accountability. With over 11 years of industry experience,Patrol Hawk has the expertise to provide you with absolute alarm system that you value most in life!

Patrol Hawk’R&D team is dedicating in research and developing alarm systems for 11 years. providing the highest-quality products and absolute best customer experience available in the security protection industry. We hold ourselves to the highest standard of employee conduct, integrity, and customer satisfaction.

Patrol Hawk’s overseas sales team. There’re 85% of the products exporting to overseas market since 2008, with heart, responsibility and fast action, that Patrol Hawk has got highly reputation from our customers, consumers.
